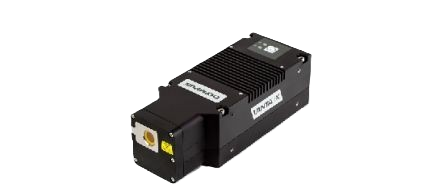

Vanta iX Inline XRF Analyzer
The Evident Vanta™ iX in-line X-ray fluorescence (XRF) analyzer gives you confidence in your products by automating material analysis and alloy identification on the manufacturing line:
Overview
Vanta™ iX In-Line XRF Analyzer for Automated Material Analysis
Keep Your Process Up to Speed
The Evident Vanta™ iX in-line X-ray fluorescence (XRF) analyzer gives you confidence in your products by automating material analysis and alloy identification on the manufacturing line:
- Delivers instant results for real-time process monitoring and 100% inspection
- Built to operate 24/7
- Configured to deliver pass/fail results, accurate grade ID, and material chemistry
Specifications
Vanta™ iX Specifications
| Dimensions (W × H × D) | 10 cm × 7.9 cm × 26.6 cm (3.9 in. × 3.1 in. × 10.5 in.) |
| Weight | 2.4 kg (5.29 lb) |
| Excitation Source | X-ray tube: Rh or W anode (application optimized) 5–200 μA MR model: 8–50 keV (4 W max) CW model: 8–40 keV (4 W max) |
| Primary Beam Filtration | Eight filter positions automatically selected per beam per method |
| Detector | MR model: Large-area silicon drift detector CW model: Standard silicon drift detector |
| Power | Power over Ethernet (PoE) or 18 V AC power adaptor |
| Elemental Range | Method dependent: MR model: Mg–U CW model: Ti–U (with standard window and calibration) |
| Pressure Correction | Built-in barometer for automatic altitude and air pressure correction |
| IP Rating | IP54 |
| Operating Environment | Temperature range: –10 °C to 50 °C (14 °F to 122 °F) under continuous duty cycle Humidity: 10% to 90% relative humidity, non-condensing |
| Operating System | Linux |
| Application Software | Evident proprietary data acquisition and processing package |
